Stepless Speed 5000mm Diameter Welding Rotator Machine Self Aligning

1. Structure principle

Self-aligned welding rotator including one power and one idle, after load on the work-piece, the roll will auto suit the work-piece, no need to adjust the center distance. The transmission mechanism: motor, multi step speed adjustable, roll, it can adopts frequency speed adjust.

2. Technical parameter

SAR-30 Series

● Maximum load capacity: 30T

● Suitable work-piece range: 600-4200mm

● Roller linear speed: 6-60m/h

● Speed adjust mode: frequency steepless speed adjust

● Motor power: 3KW

● Rubber roller diameter and width: 400*120mm

● Metal roller diameter and width: 2*390*40mm

SAR-50 Series

● Maximum load capacity: 50T

● Suitable work piece range: 750-4800mm

● Roller linear speed: 6-60m/h

● Speed adjust mode: frequency steepless speed adjust

● Motor power: 4KW

● Rubber roller diameter and width: 450*120mm

● Metal roller diameter and width: 2*440*50mm

SAR-100 Series

● Maximum load capacity: 100T

● Suitable work piece range: 1000-5500mm

● Roller linear speed: 6-60m/h

● Speed adjust mode: frequency steepless speed adjust

● Motor power: 5.5KW

● Rubber roller diameter and width: 500*120mm

● Metal roller diameter and width: 2*490*80mm

SAR-200 Series

● Maximum load capacity: 200T

● Suitable work piece range: 1800-8000mm

● Roller linear speed: 6-60m/h

● Speed adjust mode: frequency steepless speed adjust

● Motor power: 7.5KW

● Metal roller diameter and width: 550*260mm

5000mm Diameter welding rotator machine

Stepless Speed welding rotator machine

5000mm self aligning welding rotator

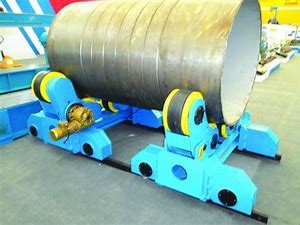

Stepless Speed 5000mm Diameter Welding Rotator Machine Self Aligning Images
